उत्पाद विवरण:
|
| भाग संख्या: | ESP32-C5HR8 | आवृत्ति: | 2.4GHz, 5GHz |
|---|---|---|---|
| डेटा दर (अधिकतम): | 150एमबीपीएस | जीपीआईओ: | 29 |
| संवेदनशीलता: | -101डीबीएम | वोल्टेज - आपूर्ति: | 3V ~ 3.6V |

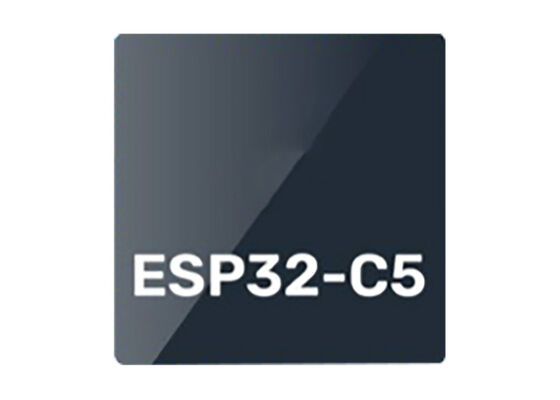

ESP32-C5HF4 WIFI Chip Ultra-Low-Power 150Mbps Dual-Band Wi-Fi 6 System On Chips
Product Description Of ESP32-C5HF4
ESP32-C5HF4 System on Chips (SoCs) support 2.4GHz and 5GHz dual-band Wi-Fi® 6, BT LE 5, Zigbee® 3.0, and Thread 1.4. The SoCs integrate a high-performance (HP) 32-bit RISC-V processor, a low-power (LP) 32-bit RISC-V processor, wireless baseband and MAC (supporting Wi-Fi, Bluetooth LE, and 802.15.4), an RF module, and multiple peripherals, with time-division coexistence among Wi-Fi, Bluetooth, and 802.15.4.
ESP32-C5HF4 SoCs feature 29 GPIOs and a comprehensive set of peripherals in a QFN package measuring 6mm x 6mm. Security features include secure boot, flash and PSRAM encryption, cryptographic accelerators, Access Permission Management (APM) hardware block, and Physical Memory Protection (PMP).
Specification Of ESP32-C5HF4
|
Frequency
|
2.4GHz, 5GHz
|
|
Data Rate (Max)
|
150Mbps
|
|
Power - Output
|
20dBm
|
|
Sensitivity
|
-101dBm
|
|
Memory Size
|
320kB ROM, 400kB SRAM
|
|
Serial Interfaces
|
ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, TWAI, UART
|
|
GPIO
|
29
|
|
Voltage - Supply
|
3V ~ 3.6V
|
|
Current - Receiving
|
89mA ~ 135mA
|
|
Current - Transmitting
|
109mA ~ 381mA
|
|
Operating Temperature
|
-40°C ~ 105°C (TA)
|
Features Of ESP32-C5HF4
Ultra-low-power MCU with 32-bit RISC-V single-core microprocessor
2.4 and 5 GHz dual-band Wi-Fi 6 (802.11ax), Bluetooth® 5 (LE), Zigbee, and Thread (802.15.4)
Support connection to external flash and PSRAM
29 GPIOs, rich set of peripherals
Security features: secure boot, flash and PSRAM encryption, cryptographic accelerators, Access Permission Management (APM) hardware block and Physical Memory Protection (PMP)
Applications Of ESP32-C5HF4
Smart home
Industrial automation
Health care
Consumer electronics
Smart agriculture
POS machines
Service robot
Audio devices
Generic low-power IoT sensor hubs
Generic low-power IoT data loggers
Wi-Fi + Bluetooth networking card
Other Electronic Components In Stock
|
Part Number |
Package |
|
TPL5010QDDCRQ1 |
SOT-23-6 |
|
LMK60E0-156257SIAR |
QFM-6 |
|
LMK61E2-125M00SIAR |
QFM-6 |
|
F28P659DK8PTPQ1 |
HLQFP-176 |
|
F28P659DK8PZPQ1 |
HTQFP-100 |
|
F28P659DK8ZEJQ1 |
NFBGA-256 |
|
F28P659DK8ZEJRQ1 |
NFBGA-256 |
|
ADC12DL500ACF |
FCBGA-256 |
|
ADC12DL2500ACF |
FCBGA-256 |
|
ADC12DL1500ACF |
FCBGA-256 |
|
ADS1288IRHBR |
VQFN-32 |
|
AFE78101RRUR |
UQFN-24 |
|
AFE781H1RRUR |
UQFN-24 |
|
AFE78201RRUR |
UQFN-24 |
|
AFE782H1RRUR |
UQFN-24 |
|
ADS9227RHAT |
VQFN-40 |
|
ADC3910D125IRSMR |
VQFN-32 |
|
REF54250CDR |
8-SOIC |
|
TDP2004IRNQR |
40-WQFN |
|
DAC81401PWR |
20-TSSOP |
|
ADS9817RSHR |
56-VQFN |
|
DAC39RFS12ACK |
256-FCBGA |
|
DAC39RF10EFACK |
256-FCBGA |
|
DAC39RF12ACK |
256-FCBGA |
|
DAC39RFS10EFACK |
256-FCBGA |
|
DRV8242HQRHLRQ1 |
20-VQFN |
|
TM4C123BH6NMRIR |
NFBGA-157 |
|
TM4C123GH6NMRIR |
NFBGA-157 |
|
F2800152QRHBRQ1 |
VQFN-32 |
|
LMG3526R050RQSR |
52-VQFN |
FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
