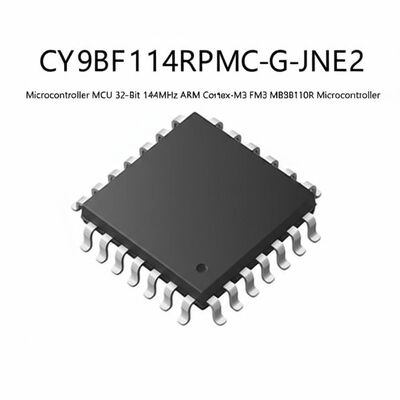

CY9BF114RPMC-G-JNE2 Microcontroller MCU 32-Bit 144MHz ARM Cortex-M3 FM3 MB9B110R Microcontroller
Product Overview
The CY9BF114RPMC-G-JNE2 is a highly integrated 32-bit microcontroller designed for embedded controllers requiring high performance at competitive cost. Based on the Arm Cortex-M3 Processor with on-chip Flash memory and SRAM, this series includes essential peripheral functions such as Motor Control Timers, ADCs, and Communication Interfaces (UART, CSIO, I2C, LIN). This product is classified under TYPE4 product categories in the FM3 Family Peripheral Manual.
Technical Specifications
| Specification |
Details |
| Core Processor |
ARM® Cortex®-M3 |
| Core Size |
32-Bit |
| Speed |
144MHz |
| Connectivity |
CSIO, EBI/EMI, I2C, LINbus, UART/USART |
| Peripherals |
DMA, LVD, POR, PWM, WDT |
| Number of I/O |
103 |
| Program Memory Size |
288KB (288K x 8) |
| Program Memory Type |
FLASH |
| RAM Size |
32K x 8 |
| Voltage Supply |
2.7V ~ 5.5V |
| Data Converters |
A/D 16x12b |
| Oscillator Type |
Internal |
| Operating Temperature |
-40°C ~ 85°C (TA) |
Key Features
- 32-bit Arm Cortex-M3 Core with processor version r2p1
- Up to 144 MHz frequency operation
- Memory Protection Unit (MPU) for improved system reliability
- Integrated Nested Vectored Interrupt Controller (NVIC) with 1 NMI and 48 peripheral interrupts across 16 priority levels
- 24-bit System timer (Sys Tick) for OS task management
- External Bus Interface supporting SRAM, NOR and NAND Flash devices
- Up to 8 chip selects with 8-/16-bit data width
- Up to 25-bit address bit with maximum area size of 256 Mbytes
- Supports Address/Data multiplex and external RDY input
