उत्पाद विवरण:
|
| भाग संख्या: | 74435581000 | अधिष्ठापन: | 10 उह |
|---|---|---|---|
| सहनशीलता: | 20% | अधिकतम डीसी करंट: | 21 ए |
| स्वप्रतिध्वनि आवृत्ति: | 15 मेगाहर्ट्ज | प्रकार: | उच्च शक्ति सूचक |
| प्रमुखता देना: | 74435581000,74435581000 Integrated Circuit Chip,SMT Flat Wire High Current Inductor |
||

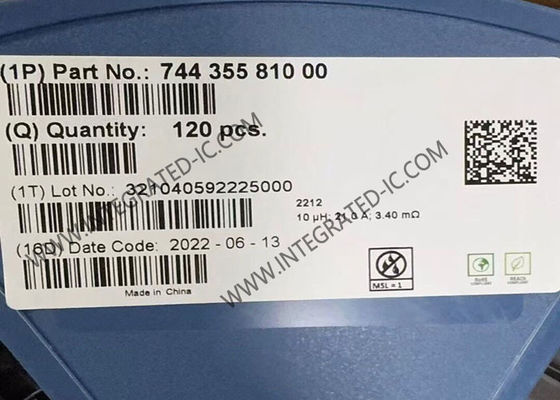

74435581000 Integrated Circuit Chip 10µH 21A SMT Flat Wire High Current Inductor
Product Description Of 74435581000
74435581000: SMT Flat Wire High Current Inductor——10µH, Shielded Drum Core, Wirewound Inductor 21A, 3.4mOhm Nonstandard.
Specification Of 74435581000
|
Type
|
Drum Core, Wirewound
|
|
Material - Core
|
Manganese Zinc Ferrite (MnZn)
|
|
Inductance
|
10 µH
|
|
Tolerance
|
±20%
|
|
Current Rating (Amps)
|
21 A
|
|
Current - Saturation (Isat)
|
26A
|
|
Shielding
|
Shielded
|
|
DC Resistance (DCR)
|
3.4mOhm
|
|
Frequency - Self Resonant
|
15MHz
|
|
Ratings
|
AEC-Q200
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Inductance Frequency - Test
|
100 kHz
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
Nonstandard
|
|
Supplier Device Package
|
2212
|
|
Size / Dimension
|
0.886" L x 0.866" W (22.50mm x 22.00mm)
|
|
Height - Seated (Max)
|
0.488" (12.40mm)
|
Features Of 74435581000
AECQ 200 qualified
Magnetically shielded
Flat wire coil for low losses at high frequency
Low stray field
Operating temperature: –40 °C to +125°C
Recommended solder profile: Reflow
Applications Of 74435581000
Graphic cards
Laptops
Industrial computers
Motherboards
High current switching regulators
DC/DC converter
Polyphase-switching regulators
Filter
