उत्पाद विवरण:
|
| भाग संख्या: | LT3645IMSE | आउटपुट वोल्टेज:: | 16 वि |
|---|---|---|---|
| आउटपुट करेंट:: | 500 मा | आउटपुट की संख्या:: | 2 आउटपुट |
| इनपुट वोल्टेज - मिनट:: | 3.6 वी | इनपुट वोल्टेज - अधिकतम:: | 36 वी |

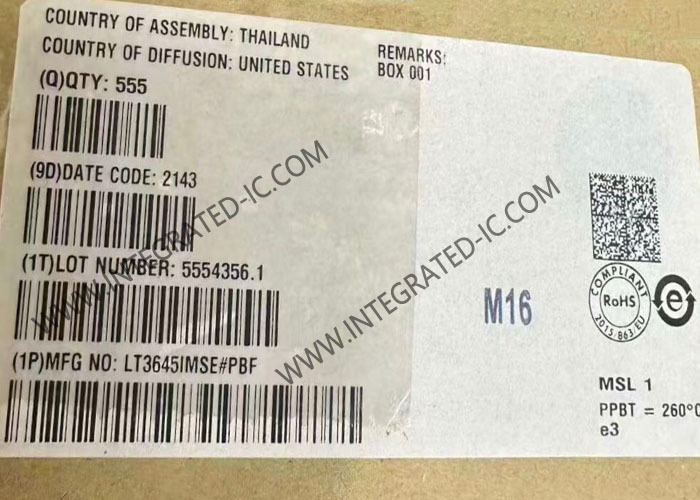

LT3645IMSE Integrated Circuit Chip 36V 500mA Step-Down Regulator And 200mA LDO
Product Description Of LT3645IMSE
LT3645IMSE is a dual output regulator combining a 500mA buck regulator and a 200mA low dropout linear regulator (LDO). The wide input voltage range of 3.6V to 36V makes the LT3645IMSE suitable for regulating power from a wide variety of sources, including 24V industrial supplies and automotive batteries. Its high operating frequency allows the use of tiny, low cost inductors and capacitors, resulting in a very small solution.
Specifications Of LT3645IMSE
|
Number of Outputs |
2 |
|
Frequency - Switching |
750kHz |
|
Voltage/Current - Output 1 |
0.8V ~ 16V, 500mA |
|
Voltage/Current - Output 2 |
0.8V ~ 8V, 200mA |
|
w/LED Driver |
No |
|
w/Supervisor |
No |
|
w/Sequencer |
No |
|
Voltage - Supply |
3.6V ~ 36V |
|
Operating Temperature |
-40°C ~ 125°C |
Features Of LT3645IMSE
Wide Input Range:
Operation from 3.6V to 36V
Overvoltage Lockout Protects Circuit Through 55V Transients on Input
500mA Output Current Switching Regulator
High Switching Frequency: 750kHz
200mA Low Dropout Linear Regulator
1.2V to 16V Input; 0.8V to 8V Output
310mV Dropout Voltage VCC2 to OUT2
Precision Programmable Undervoltage Lockout
Short-Circuit Robust
Internal Soft-Start
<2μA Shutdown Current
Small Thermally Enhanced 16-Lead (3mm × 3mm) QFN and 12-Lead MSE Packages
Applications Of LT3645IMSE
Automotive CMOS Image Sensors
Industrial/Automotive Micro-Controller Supply
