उत्पाद विवरण:
|
| भाग संख्या: | LTC2485IDD | संकल्प: | 24 बिट |
|---|---|---|---|
| नमूना दर: | 15 एस/एस | DNL - डिफरेंशियल नॉनलाइनरिटी: | 1 एलएसबी |
| INL - इंटीग्रल नॉनलाइनरिटी: | 33.5 एलएसबी | पावर अपव्यय: | 480 UW |

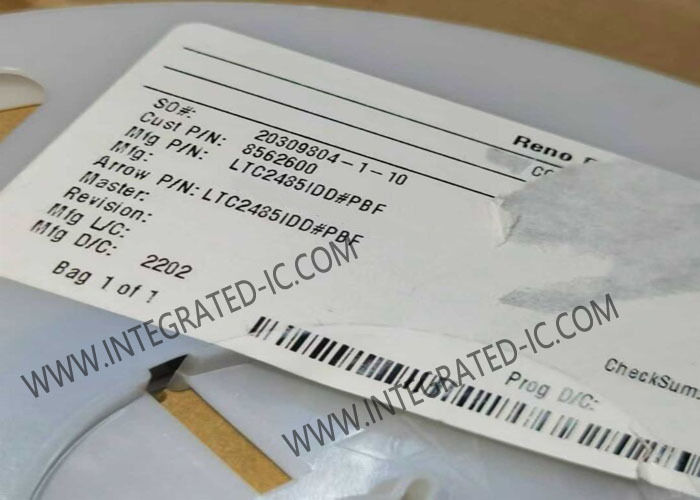

LTC2485IDD Integrated Circuit Chip Analog To Digital Converters 24-Bit ADC Converters
Product Description Of LTC2485IDD
LTC2485IDD combines a 24-bit plus sign No Latency ΔΣ™ analog-to-digital converter with patented Easy Drive technology and I2C digital interface. The patented sampling scheme eliminates dynamic input current errors and the shortcomings of on-chip buffering through automatic cancellation of differential input current. This allows large external source impedances and input signals, with rail-to-rail input range to be directly digitized while maintaining exceptional DC accuracy.
Specification Of LTC2485IDD
|
Number of Bits
|
24
|
|
Sampling Rate (Per Second)
|
7.5
|
|
Number of Inputs
|
1
|
|
Input Type
|
Differential
|
|
Data Interface
|
I2C
|
|
Configuration
|
MUX-ADC
|
|
Number of A/D Converters
|
1
|
|
Architecture
|
Sigma-Delta
|
|
Reference Type
|
External
|
|
Voltage - Supply, Analog
|
2.7V ~ 5.5V
|
|
Voltage - Supply, Digital
|
2.7V ~ 5.5V
|
|
Features
|
Selectable Address, Temperature Sensor
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Package / Case
|
10-WFDFN Exposed Pad
|
|
Supplier Device Package
|
10-DFN (3x3)
|
|
Mounting Type
|
Surface Mount
|
Features Of LTC2485IDD
Easy Drive™ Technology Enables Rail-to-Rail Inputs with Zero Differential Input Current
Directly Digitizes High Impedance Sensors with Full Accuracy
GND to VCC Input/Reference Common Mode Range
2-Wire I2C Interface
Programmable 50Hz, 60Hz or Simultaneous 50Hz/60Hz Rejection Mode
2ppm (0.25LSB) INL, No Missing Codes
1ppm Offset and 15ppm Full-Scale Error
Selectable 2x Speed Mode
No Latency: Digital Filter Settles in a Single Cycle
Single Supply 2.7V to 5.5V Operation
Internal Oscillator
Six Addresses Available and One Global Address for Synchronization
Available in a Tiny (3mm × 3mm) 10-Lead DFN Package
Applications Of LTC2485IDD
Direct Sensor Digitizer
Weight Scales
Direct Temperature Measurement
Strain Gauge Transducers
Instrumentation
Industrial Process Control
DVMs and Meters
